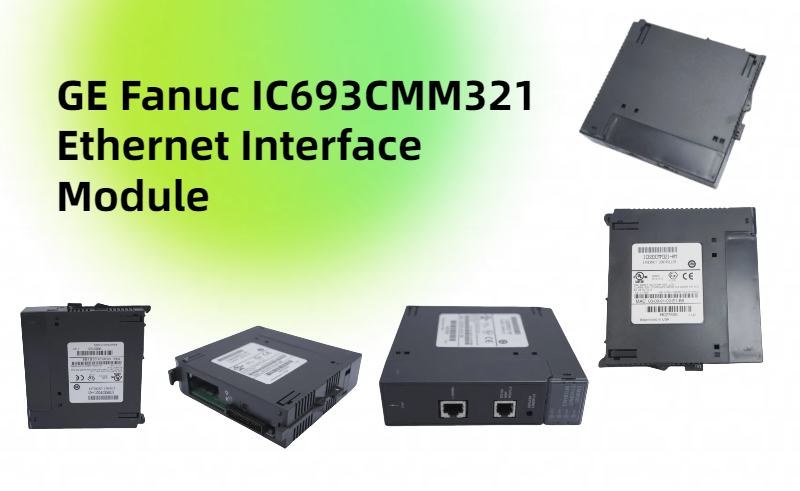

The GE Fanuc IC693CMM321 is an integral component of the Series 90-30 Programmable Logic Controller (PLC) platform, renowned for its robust capabilities in industrial automation. This Ethernet interface module serves as a bridge between the Series 90-30 baseplate and existing Ethernet networks, enabling efficient communication and connectivity within various automation systems. In this article, we’ll delve into the key features, specifications, and installation guidelines for the IC693CMM321, while addressing some common questions related to its use.
The IC693CMM321 module is designed to facilitate seamless communication in industrial environments. Its primary features include:
Direct Network Integration: The module allows for direct interfacing of the Series 90-30 PLC with an Ethernet network, supporting the implementation of distributed I/O systems. This capability is crucial for industries that require real-time data sharing and processing across multiple devices.
Versatile Communication: The IC693CMM321 supports various communication protocols, including TCP/IP and UDP. This versatility enables it to interact with a wide range of devices, from remote stations to Human Machine Interfaces (HMIs) and Supervisory Control and Data Acquisition (SCADA) systems.
Single-Slot Design: With its compact single-slot design, the module is easy to integrate into existing systems without requiring extensive modifications. It connects via an AAUI cable and an external transceiver, streamlining the installation process.
Legacy System Compatibility: While the IC693CMM321 is considered obsolete, it remains a critical component in many legacy systems. Understanding its functionalities is essential for operators maintaining older installations.
For those looking to understand the technical specifications of the IC693CMM321, here’s a quick overview:
These specifications highlight the module's essential functions and its role in integrating with Ethernet networks, ensuring efficient data transmission and communication.
Installing and configuring the IC693CMM321 module is a straightforward process, provided that users follow the appropriate guidelines. Here’s a general overview of the steps involved:
Pre-installation Preparation: Before installing the module, ensure that all necessary connection accessories, such as the AAUI cable and external transceiver, are available.
Mounting the Module: Insert the IC693CMM321 module into a vacant slot on the Series 90-30 baseplate, ensuring it is securely connected.
Establishing Connections: Connect the AAUI cable from the module to the external transceiver, and then link the transceiver to the Ethernet network.
Powering Up: Once all connections are made, power up the PLC system to initialize the module.
Configuration: For configuration, refer to the user manual’s installation guide. This typically includes steps for setting communication parameters and verifying network connections.
By following these steps, operators can effectively set up the IC693CMM321 and ensure optimal performance within their automation systems.
The primary function of the IC693CMM321 module is to facilitate communication between GE Fanuc PLCs and Ethernet networks. This includes supporting distributed I/O configurations and enabling interaction with remote devices and systems.
The IC693CMM321 supports multiple communication protocols, notably TCP/IP and UDP. This support allows it to communicate effectively with various industrial devices and systems, enhancing interoperability.
To install and configure the IC693CMM321, follow the installation guide in the user manual. This guide provides step-by-step instructions, ensuring a smooth setup process.
Given that the IC693CMM321 is discontinued, consider exploring newer Ethernet interface modules compatible with your existing systems. Consult with your automation supplier for recommendations that meet your operational needs.
To maximize the performance of the IC693CMM321, ensure that all connections are secure, and regularly check for firmware updates and compatibility with your network infrastructure. Proper maintenance and monitoring can help prevent communication issues.
The GE Fanuc IC693CMM321 Ethernet interface module has played a vital role in the integration of PLC systems with Ethernet networks. Despite being discontinued, understanding its functionalities and capabilities is essential for industries that rely on legacy systems. By following the installation and configuration guidelines, operators can ensure seamless communication and enhance their automation processes. For those looking to modernize their systems, exploring alternative Ethernet modules can provide improved connectivity and functionality.
